Plug-in API

The plug-in API lets you override the default behaviour and user interface in your RestDB admin backend application.

To create a plug-in, switch to development mode (top right "gears button"), navigate to the stop level "Plug-in editor" tab. The code editor lets you write Javascript to customize lists and details views in your database backend.

The plug-in code editor is shown below:

API

Listview row plug-in

The default list view in RestDB looks something like the following screenshot:

The example plug-in code below, changes how the rows and columns are rendered.

// Row style
plugins.register("list-view-row-renderer", function(row, context){
    if (context.collection == "backlog") {
        let style = "";
        if (row.priority >= 2) {
            // RED
            style = "background: #EE432F; color: #000;";
        }

        if (row.priority == 1) {
            // GREEN
            style = "background: #48AB6C;";
        }

        return style;
    }
});

// Cell style

plugins.register("list-view-cell-renderer", function(cell, context){

    if (context.collection == "backlog" && context.field == "priority") {
        let style = "";
        if (cell.priority >= 2) {
            // RED
            style = "font-size: large; color: white";
        }
        return style;
    }
});

The plug-in above will result in a view like the example screenshot below:

Detail field plug-in

The field plug-in gives you access to the DOM in the every detail view. Lets say we want to change a text field to a password and read-only field, and add a new element to it. The example plug-in below does exactly this.

// Field styles

plugins.register("detail-view-field-renderer", (field, context) => {
    if (context.collection === "users") {
        // set to readonly password
        field.find("input[name='pwd']")
        .attr("readonly", true)
        .attr("type", "password")
        .closest(".form-group")
        .append($('<span class="text-danger">Top secret <i class="fa fa-user-secret"></i></span>'));

    }
});

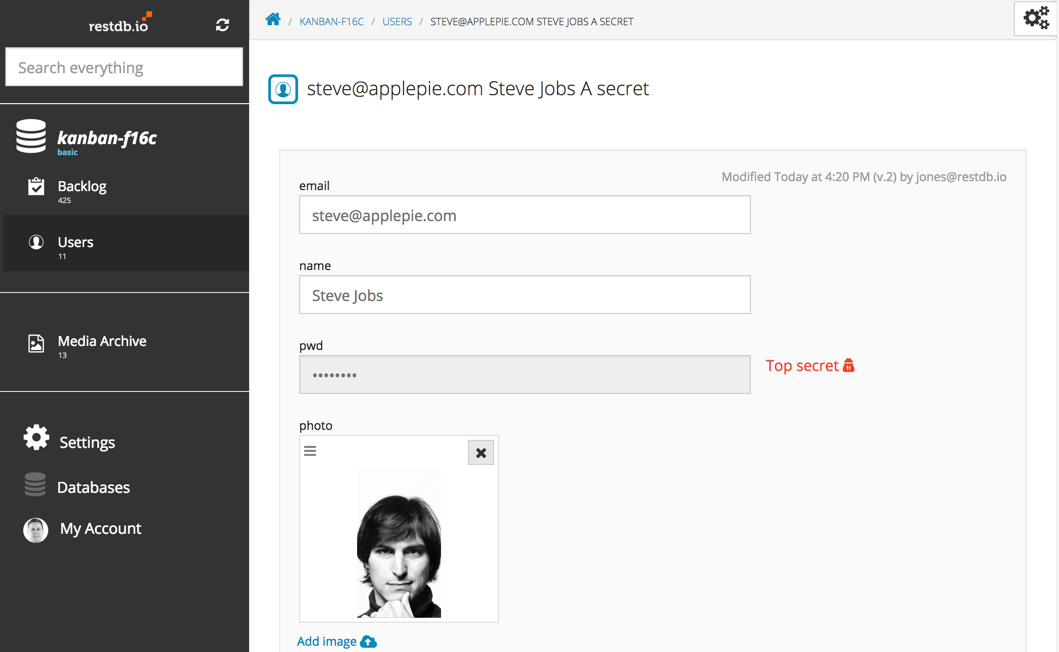

Example screenshot from the plug-in above, with a read-only password field and a new label.

Layout and grouping plug-in

The detail-view-layout plug-in lets you add groups on data controls and present them in custom orders. You can also add new "virtual" fields that you can use to further customize a view.

The example screenshot from the users collection with groups and custom fields is shown below:

The following plug-in code is used to create the users detail view shown in the screenshot show above.

Notice that the first group has some standard fields expressed as strings with the corresponding field name to the array. The second group, however, adds 3 new fields as pure Javascript functions.

plugins.register("detail-view-layout", {}, function(data, context){
    if (context.collection == "users") {
        return [
            {
                "groupname": "User data",
                "fields": [
                    "email",
                    "pwd",
                    "name"
                ]
            },
            {
                "groupname": "Meta data",
                "fields": [
                    (data) => `<div class="container">Created by ${data._createdby} ${moment(data._created).calendar()}</div>`,
                    (data) => `<div class="container">Revison no. ${data._version}</div>`,
                    (data) => `<div class="container">Changed ${moment(data._changed).calendar()} by ${data._changedby}</div>`
                ]
            }
        ]
    }
});

Data previews plug-in

RestDB uses a default way to view a record in various contexts. In list columns, lookup selections, record headers etc. This can be changed with the record-preview plug-in. The example plug-in below changes how a user is displayed, more importantly, hides the password :)

plugins.register("record-preview", (data, context) => {
    if (context.collection == "users") {
        if (Array.isArray(data)) {
            return data.length + ' user(s)';
        } else {
            return `${data.email} ${data.name}`;
        }
    }
});

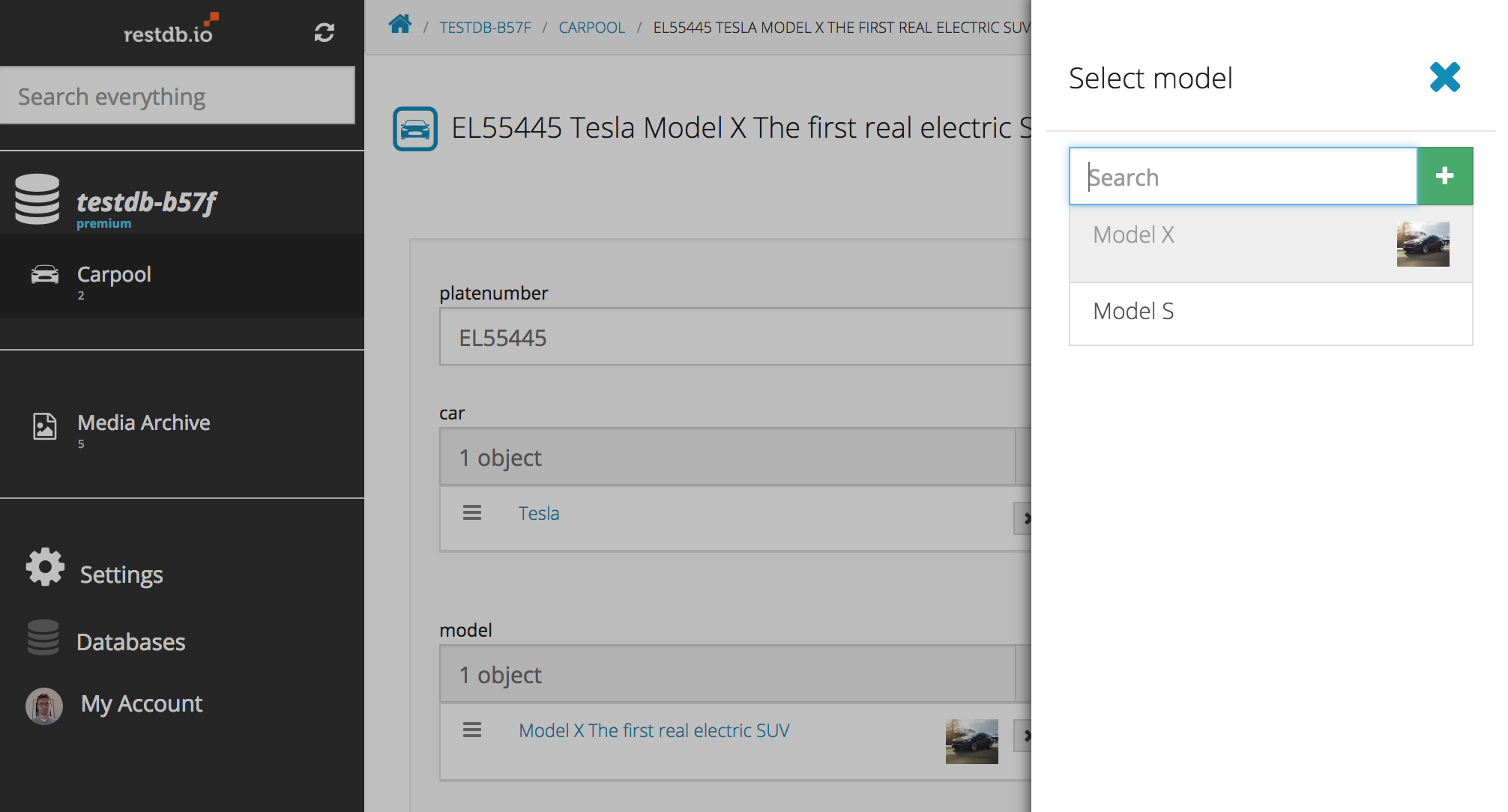

Lookup select plug-in

This plugin is useful if you want to modify what to display when users click a relation field. You can modify the query OR filter (free text search), effectively narrowing down the list of available items. You can return query, filter, item_text and item_html. In the example below, we are filtering "models" and "makes" based on the unsaved field car and model.

plugins.register("lookup-select", function(context){
    // context contains: collection, field, record, unsavedrecord
    if (context.collection=="carpool" && context.field=="model"){
        // you can return either "query" (JS object) OR "filter" (string), item_text (text/handlebars), item_html (text/handlebars)
        return {
            query:{_parent_id:context.unsavedrecord.car[0]},
            item_text: "{{name}}"
        }
    }
     if (context.collection=="carpool" && context.field=="make"){
        return {
            query:{_parent_id:context.unsavedrecord.model[0]},
            item_html: "{{name}} <img src='/media/{{images.[0]}}'>"
        }
    }
});

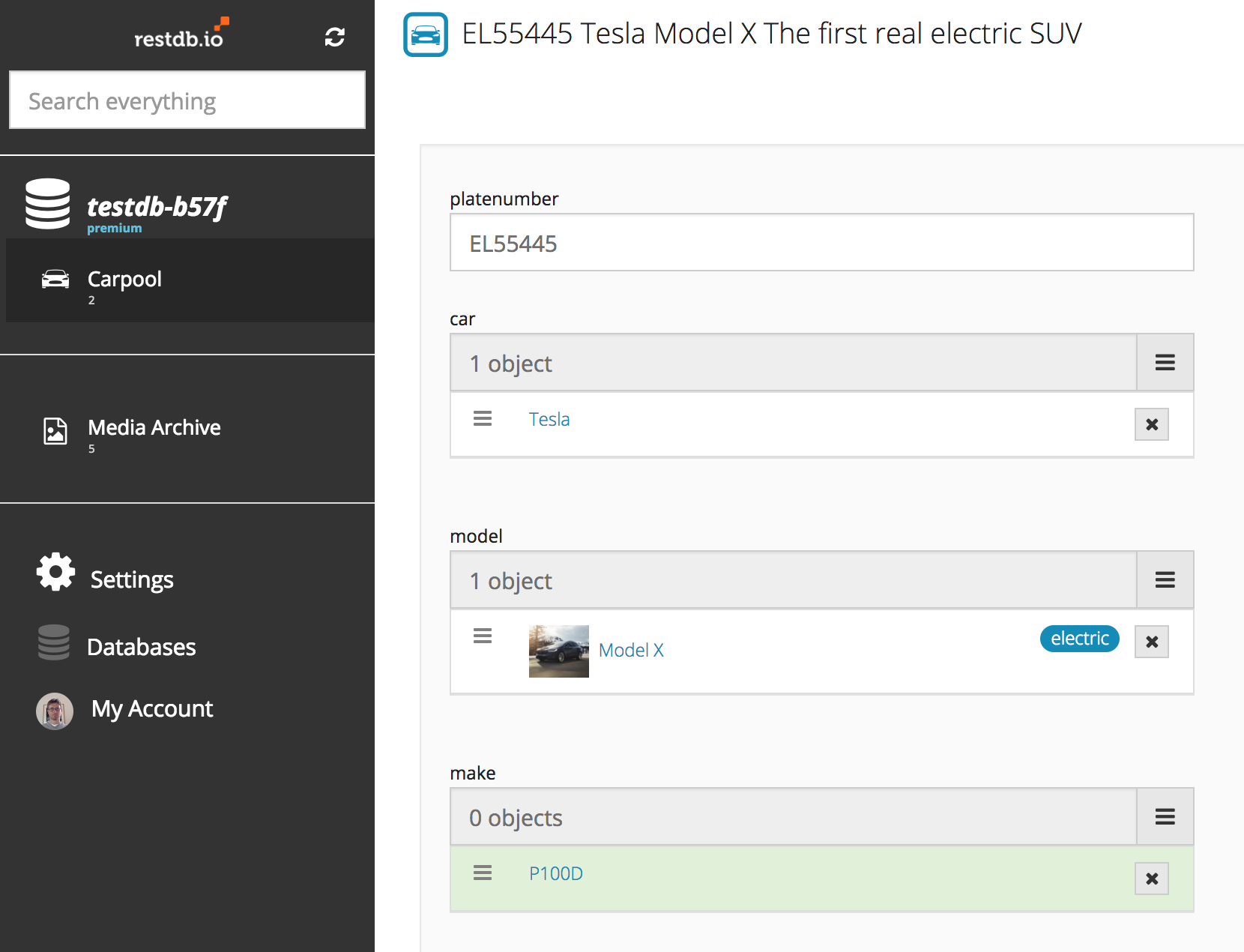

Lookup field plug-in

This plugin modifies a lookup/relation field on a record detail view. The incoming "context" parameter is an object with the following properties, collection, field, record. The plugin can return "item_text" or "item_html". These are HandlebarsJS templates where you can reference field from the record the lookup/relation refers to. The following example displays a custom template.

plugins.register("lookup-field", function(context){
    if (context.collection=="carpool" && context.field=="model"){
      var electric = context.record.platenumber.indexOf("EL")===0;
      var template = "{{#if images.[0]}}<img src='/media/{{images.[0]}}'>{{/if}} &nbsp;<a href='{{_link}}'>{{name}}</a>";
      if (electric){
        template+="<span class='badge pull-right'>electric</span>";
      }
      return {
        item_html: template
      }
    }
});
